Modo Pod Screen / Envelope

Information

Product parameters

1-Design Inspiration

1-NAME

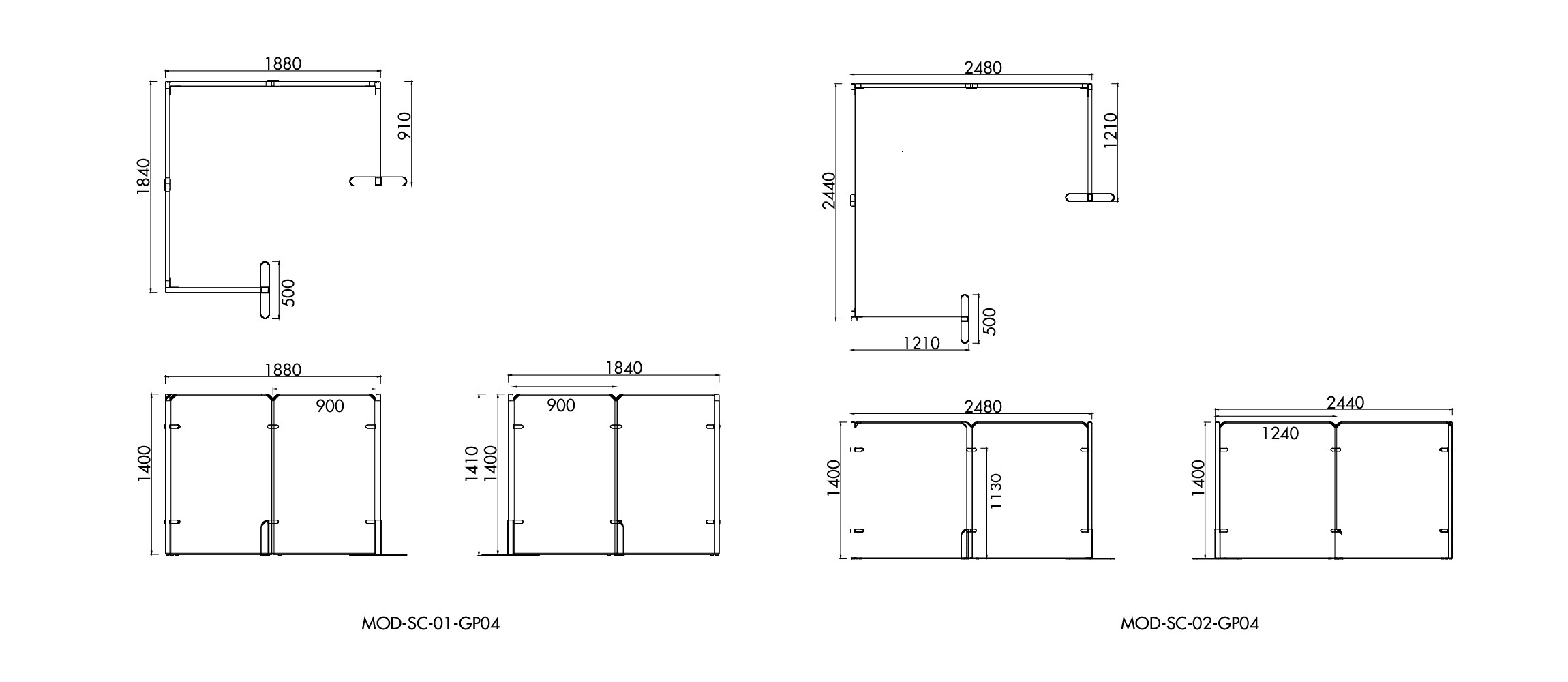

Modo Pod Screen / Envelope - G01

1-TYPE

MOD-SC-01-GP04

1-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

1-SIZE

L2110 D2070 H1410

1-PROCCESS

1-PACKAGE SIZE

PACKAGE1：W1525 D1025 H135；PACKAGE2：W1525 D1025 H135；PACKAGE3：W1525 D1025 H115；PACKAGE4：W615 D355 H115

1-PACKAGE VOLUME

0.63m³

1-NET WEIGHT

94.7kg

1-GROSS WEIGHT

112.7kg

1-NUMBER OF PACKAGES

1 PCS/ 4 CTN

1-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

2-Design Inspiration

2-NAME

Modo Pod Screen / Envelope - G02

2-TYPE

MOD-SC-02-GP04

2-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

2-SIZE

L2710 D2670 H1410

2-PROCCESS

2-PACKAGE SIZE

PACKAGE1：W1525 D1325 H135；PACKAGE2：W1525 D1325 H135；PACKAGE3：W1525 D1325 H115；PACKAGE4：W615 D355 H115

2-PACKAGE VOLUME

0.80m³

2-NET WEIGHT

124.7kg

2-GROSS WEIGHT

145.7kg

2-NUMBER OF PACKAGES

1 PCS/ 4 CTN

2-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

3-Design Inspiration

3-NAME

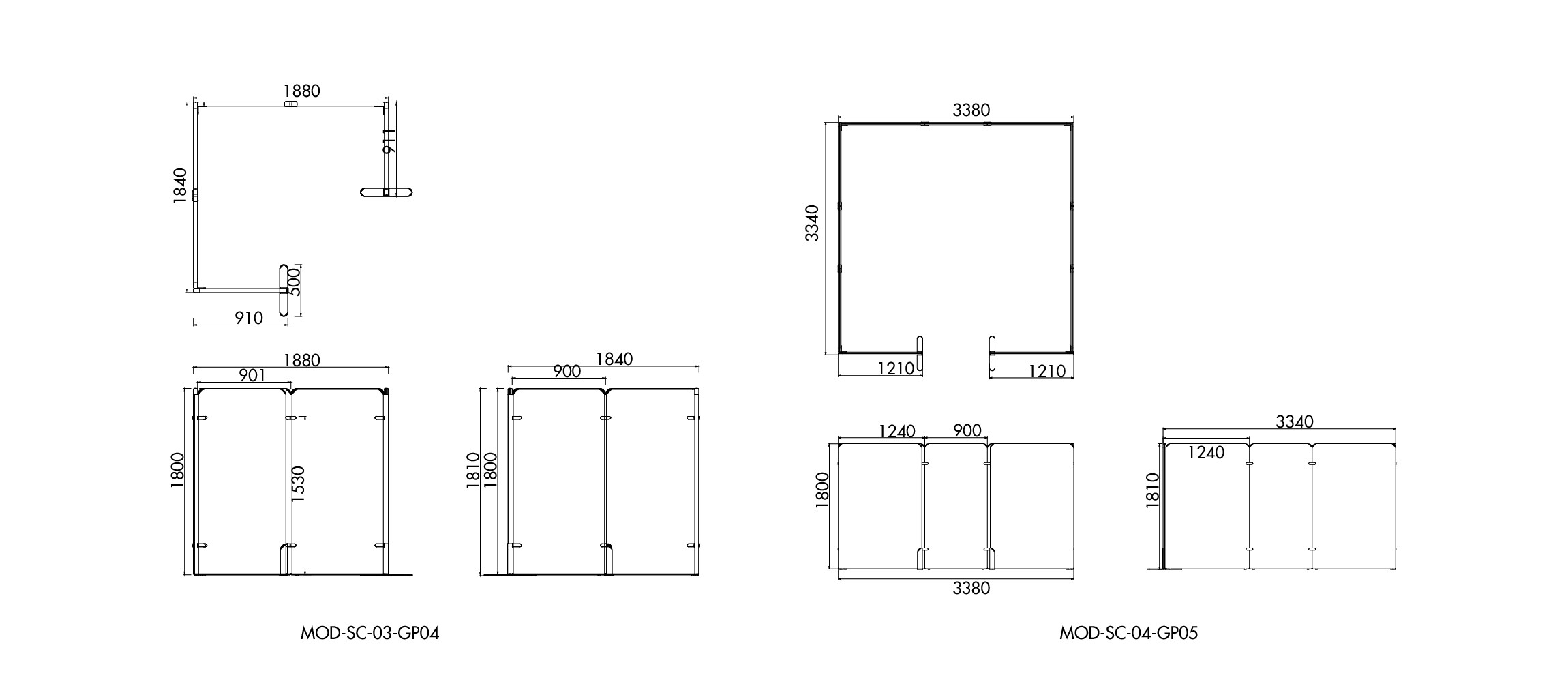

Modo Pod Screen / Envelope - G03

3-TYPE

MOD-SC-03-GP04

3-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

3-SIZE

L2110 D2070 H1810

3-PROCCESS

3-PACKAGE SIZE

PACKAGE1：W1925 D1025 H135；PACKAGE2：W1925 D1025 H135；PACKAGE3：W1925 D1025 H135；PACKAGE4：W615 D355 H115

3-PACKAGE VOLUME

0.82m³

3-NET WEIGHT

121.7kg

3-GROSS WEIGHT

144.2kg

3-NUMBER OF PACKAGES

1 PCS/ 4 CTN

3-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

4-Design Inspiration

4-NAME

Modo Pod Screen / Envelope - G04

4-TYPE

MOD-SC-04-GP04

4-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

4-SIZE

L2710 D2670 H1810

4-PROCCESS

4-PACKAGE SIZE

PACKAGE1：W1525 D1025 H135；PACKAGE2：W1525 D1025 H135；PACKAGE3：W1525 D1025 H135；PACKAGE4：W615 D355 H115

4-PACKAGE VOLUME

1.06m³

4-NET WEIGHT

160.7kg

4-GROSS WEIGHT

190.7kg

4-NUMBER OF PACKAGES

1 PCS/ 4 CTN

4-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

5-Design Inspiration

5-NAME

Modo Pod Screen / Envelope - G05

5-TYPE

MOD-SC-03-GP05

5-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

5-SIZE

L2780 D2970 H1810

5-PROCCESS

5-PACKAGE SIZE

PACKAGE1：W1925 D1025 H75；PACKAGE2：W1925 D1025 H135；PACKAGE3：W1925 D1025 H135；PACKAGE4：W1925 D1025 H135；PACKAGE5：W1925 D1025 H135；PACKAGE6：W1925 D1025 H135；PACKAGE7：W615 D355 H115

5-PACKAGE VOLUME

1.50m³

5-NET WEIGHT

217kg

5-GROSS WEIGHT

261kg

5-NUMBER OF PACKAGES

1 PCS/ 7 CTN

5-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

6-Design Inspiration

6-NAME

Modo Pod Screen / Envelope - G06

6-TYPE

MOD-SC-04-GP05

6-MATERIAL

Frame: Steel frame inside, Plywood Filling: Upholstery batting on both side Legs & Connector: Welded steel sheets Finishing of legs & connector: Powder coated (Black)

6-SIZE

L3380 D3570 H1810

6-PROCCESS

6-PACKAGE SIZE

PACKAGE1：W1925 D1025 H75；PACKAGE2：W1925 D1025 H135；PACKAGE3：W1925 D1325 H135；PACKAGE4：W1925 D1325 H135；PACKAGE5：W1925 D1325 H135；PACKAGE6：W1925 D1025 H135；PACKAGE7：W615 D355 H115

6-PACKAGE VOLUME

1.82m³

6-NET WEIGHT

1.82m³

6-GROSS WEIGHT

323kg

6-NUMBER OF PACKAGES

1 PCS/ 7 CTN

6-PACKING METHOD

Double wall corrugated board outer packing / Wrap up bubble wrap and PE bag.

Regular

GM-61003
GM-61002
GM-68005
GM-60167

Base

Black


3D Model

TitleFile: MOD-SC-01-GP04.3ds3ds 12.26M
Download; MOD-SC-01-GP04.objobj 59.77M
Download; MOD-SC-02-GP04.3ds3ds 12.59M
Download; MOD-SC-02-GP04.objobj 61.48M
Download; MOD-SC-03-GP04.3ds3ds 12.78M
Download; MOD-SC-03-GP04.objobj 62.38M
Download; MOD-SC-04-GP04.3ds3ds 13.73M
Download; MOD-SC-04-GP04.objobj 67.98M
Download; MOD-SC-03-GP05.3ds3ds 22.17M
Download; MOD-SC-03-GP05.objobj 109.28M
Download; MOD-SC-04-GP05.3ds3ds 23.42M
Download; MOD-SC-04-GP05.objobj 117.22M
Download

SU Model

TitleFile: MOD-SC-01-GP04.skpskp 16.09M
Download; MOD-SC-02-GP04.skpskp 14.38M
Download; MOD-SC-03-GP04.skpskp 14.33M
Download; MOD-SC-04-GP04.skpskp 14.87M
Download; MOD-SC-03-GP05.skpskp 26.83M
Download; MOD-SC-04-GP05.skpskp 28.12M
Download

CAD Model

TitleFile: MOD-SC-01-GP04.dwgdwg 2.53M
Download; MOD-SC-02-GP04.dwgdwg 2.88M
Download; MOD-SC-03-GP04.dwgdwg 3.42M
Download; MOD-SC-04-GP04.dwgdwg 3.99M
Download; MOD-SC-03-GP05.dwgdwg 4.73M
Download; MOD-SC-04-GP05.dwgdwg 5.5M
Download

Revit Model

TitleFile: MOD-SC-01-GP04.rvtrvt 6.42M
Download; MOD-SC-02-GP04.rvtrvt 6.42M
Download; MOD-SC-03-GP05.rvtrvt 7.5M
Download; MOD-SC-04-GP05.rvtrvt 7.56M
Download; MOD-SC-03-GP04.rvtrvt 6.4M
Download; MOD-SC-04-GP04.rvtrvt 6.43M
Download
